Model: SLT-720
Working Pressure: 33 MPa (330 bar)
Displacement (Suction): 720 L/min
Type: X-type layout – four-cylinder, four-stage reciprocating piston compression
Drive: 380V/50Hz/15 kW
Lubrication: Oil pump lubrication (food-grade lubricant 750-H2)
Cooling: Air
Control: PLC system with automatic shutdown, automatic blowdown, temperature control, phase sequence protection, emergency stop, low noise, low temperature, low speed, oil filtration, touchscreen display
Clean Air: 1-stage air filtration, 3-stage oil-water separation, 1-stage air purification
Working principle
This product is mass-produced after modifications and optimizations to a German design. The final-stage piston utilizes a specialized process, the piston rings utilize Japanese Riken technology, and all castings are outsourced to specialized large-scale factories, earning widespread acclaim from users. This product utilizes four-cylinder, four-stage compression, oil pump lubrication, interstage safety valves, and a deep filtration system. The SLT-720 can provide safe compressed air for any industry requiring a high-pressure, pure air source, and also provides safe compressed air that meets human breathing requirements.
Product composition and characteristics
- Pressure sensor: Accurate data, freely adjustable shutdown pressure
- Efficient oil pump lubrication: Ensures equipment operation
- Cooling: Equipped with an interstage filtration system and stainless steel cooling at the final stage
- Filtration: Equipped with intake filtration, interstage filtration, and a deep air purification system, ensuring safe and clean compressed air
- Safety: Box-type design and interstage safety valves ensure cylinder and personnel safety; 6. Noise control: Built-in silencer
- Oil filtration: Maintains lubricant cleanliness, reduces machine wear, and increases service life
- PLC microcomputer control system
- Motor overload and overvoltage protection
Main Applications
Diving cylinder filling
Diving breathing applications: Diving clubs, diving enthusiasts, marine aquaculture, maritime rescue, shipboard equipment, underground operations, fishing, aquaculture, sunken object salvage, underwater engineering, water parks, shipbuilding and other industries provide divers with highly purified, clean, odorless, safe and reliable compressed breathing air. In environments where normal human breathing air cannot meet the needs of the human body, the air can be filled into high-pressure cylinders for human breathing.
Fire cylinder filling
Fire breathing application: equipped in each fire brigade gas supply station or various fire trucks, it provides on-site emergency air supply at the fire scene or during rescue and disaster relief, so that the majority of fire commanders and fighters can breathe highly purified, clean, odorless, safe and reliable compressed air in various environments such as thick smoke, toxic gas, steam or hypoxia, thereby ensuring that firefighters can safely and effectively carry out fire fighting, rescue, disaster relief and first aid.

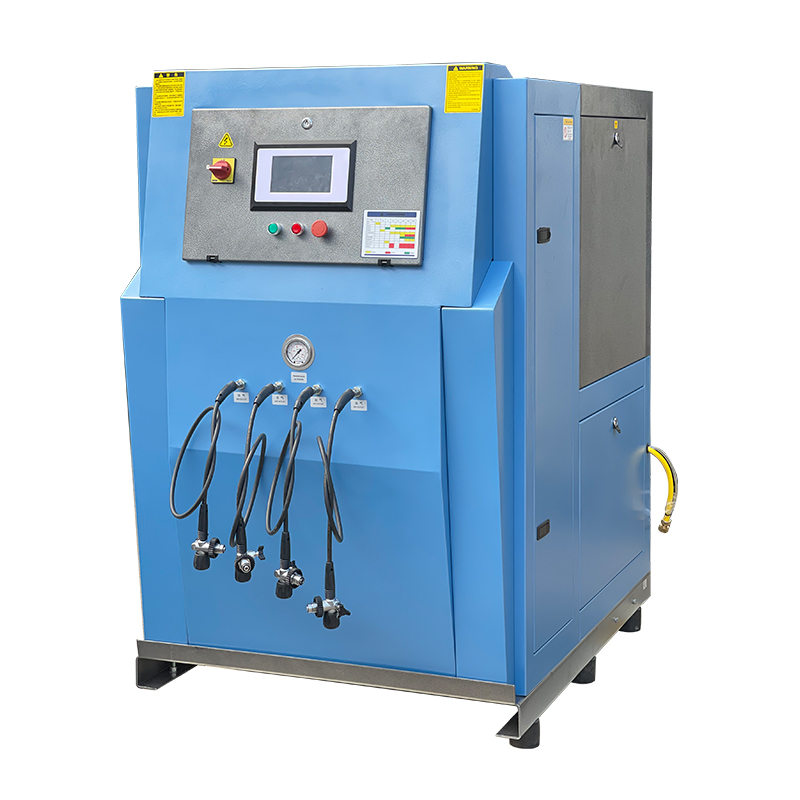

Product Display
