SOLLANT centrifugal compressor has excellent mechanical structure design, which can ensure the provision of continuous, stable, oil-free, high-quality compressed air with minimum maintenance workload. Its high-efficiency operation can fully meet the needs of various process flows and factory air systems.
Sollant manufactures centrifugal compressors widely used in various industrial applications. They are renowned for their reliability, ease of integration, and high efficiency.

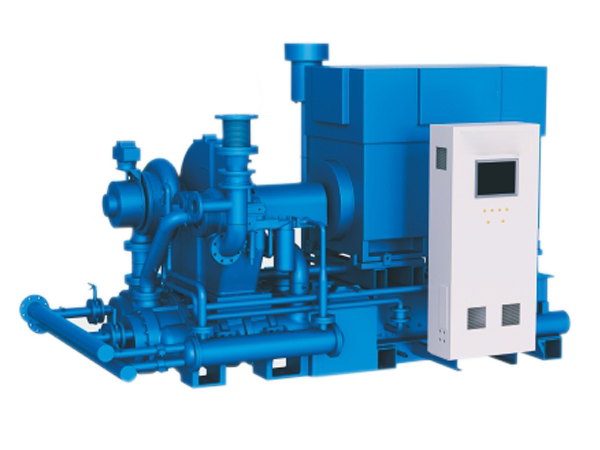

AH CENTRIFUGAL COMPRESSOR
Capacity Range: 25-100 m³/min
Discharge pressure: 0.6-11bar(g)
Main Motor Power: 100-600KW
Main Motor Voltage: 380V/3KV/6KV/10KV/50Hz/3Ph
Base Size: 3400mmx2200mm
Weight: 7000Kg-8000Kg

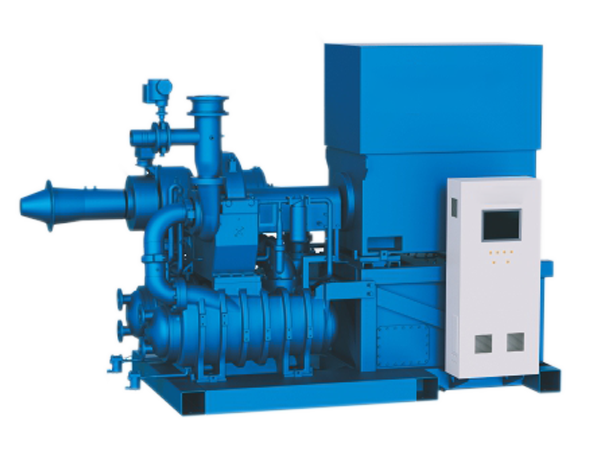

SH CENTRIFUGAL COMPRESSOR
Capacity Range: 100-240 m³/min
Discharge pressure: 0.6-16bar(g)
Main Motor Power: 300-1350KW
Main Motor Voltage: 380V/3KV/6KV/10KV/50Hz/3Ph
Base Size: 4000mmx2300mm
Weight: 9000Kg-11000Kg

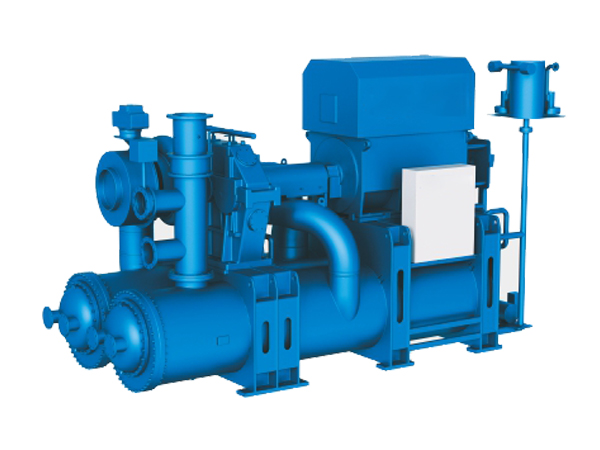

TH CENTRIFUGAL COMPRESSOR
Capacity Range: 200-400 m³/min
Discharge pressure: 0.6-11bar(g)
Main Motor Power: 600-2000KW
Main Motor Voltage: 3KV/6KV/10KV/50Hz/3Ph
Base Size: 5000mmx2300mm
Weight: 16000Kg-20000Kg
LH CENTRIFUGAL COMPRESSOR
Capacity Range: 400-1800 m³/min
Discharge pressure: 0.6-150bar(g)
Main Motor Power: 1000-15000KW
Main Motor Voltage: 3KV/6KV/10KV/50Hz/3Ph
Base Size: 12000mmx6500mm
Weight: 20000Kg-70000Kg
Product Advantages
PRECISE ASSEMBLY PROCESS
Horizontal split type for easy maintenance of the bearings and shaft seals.Thrust collar instead of thrust bearings. Which makes the structure simpler and increase the transmission efficiency and reliability.
ADVANCED CENTRIFUGAL COMPRESSOR TECHNOLOGY
Double labyrinth seal, 100% oil-free, no instrument air required. Aerodynamic engineering design. High reliability bearing, 0.7 kg low oil pressure design
HIGH PERFORMANCE EXTERNAL COCHLEA
The external vortex has one less secondary flow than the internal vortex, resulting in a 2% increase in efficiency.
CUSTOMIZED IMPELLER
Unique optimal line golden impeller set, higher corrosion resistance, avoid turbulence, reduce overspeed blockage. Forged five-axis machining, three-dimensional flow backward design, aviation titanium alloy material
PATENTED 3D EFFICIENT COOLER
Water in tube and air in shell, easy maintenance. Variable cross-section patented design is adopted for cooler cabinet. Patented self-seal structure, easy maintenance and more reliable. Allowance for heat recovery design. Which improves the comprehensive utilization efficiency of energy.
SMARTENERGY SAVINGCONTROL MODE
Each transmission component of the machine has undergone multiple tests and calibrations, with accuracy reaching intemational advanced standards. Reduced transmission loss, smoother transmission, lower noise, and longer lifespan.
Our Exclusive Client's

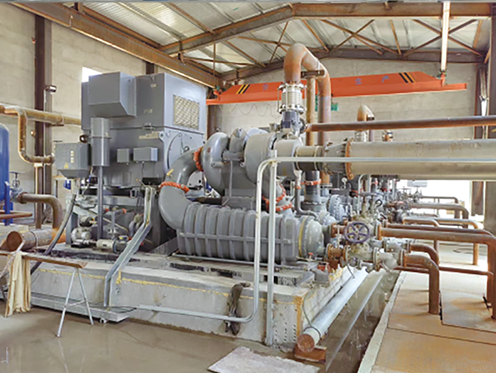

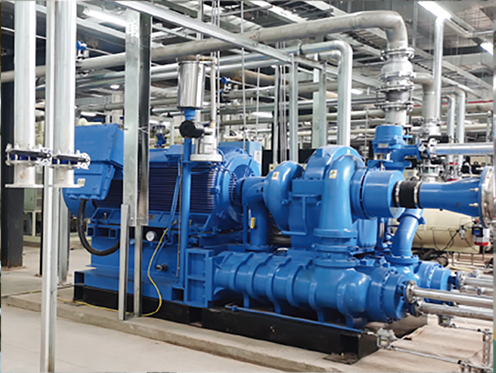

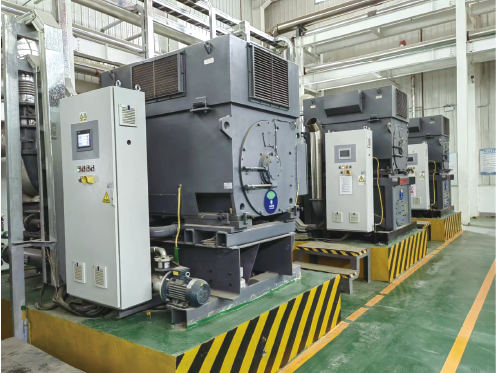

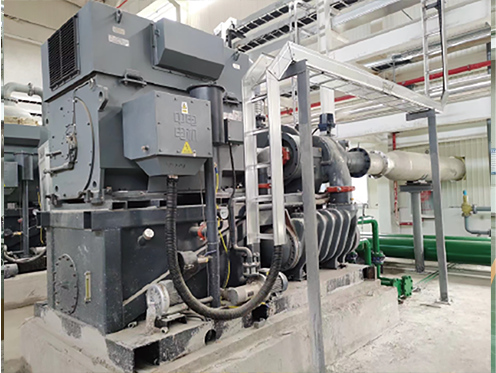

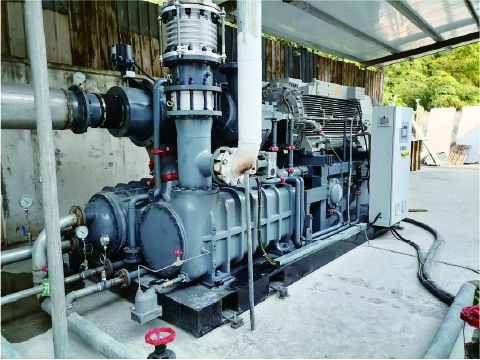

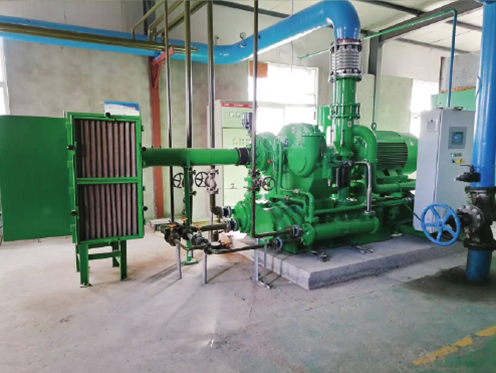

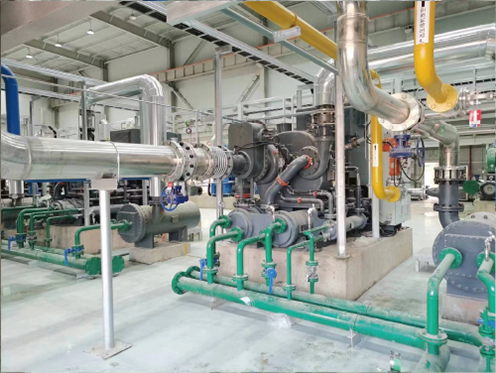

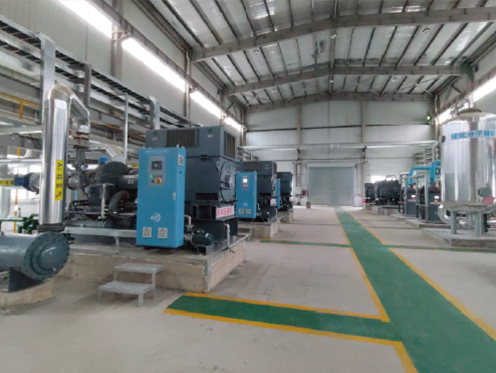

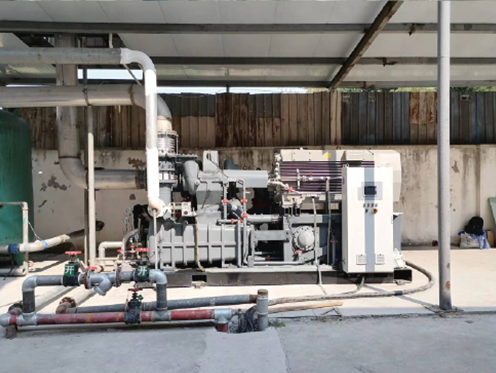

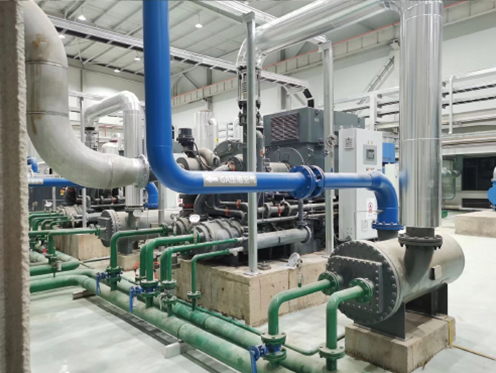

Project Sites
